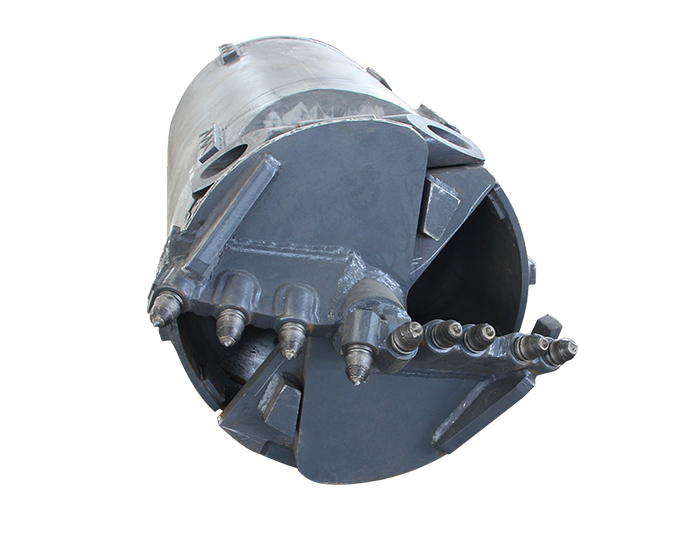

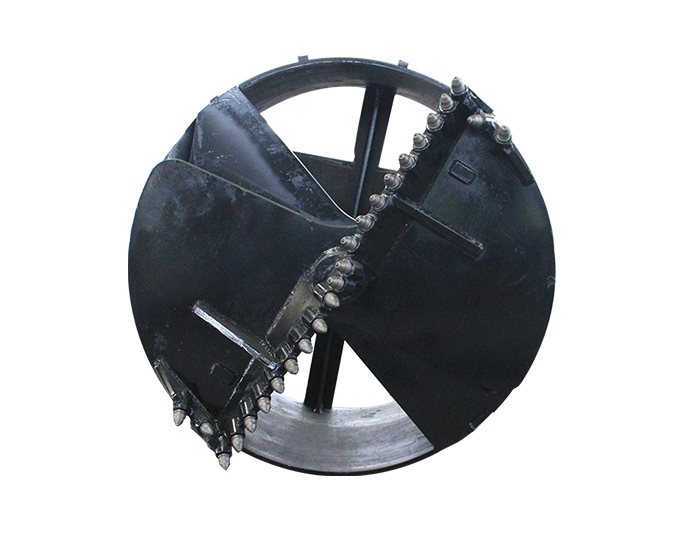

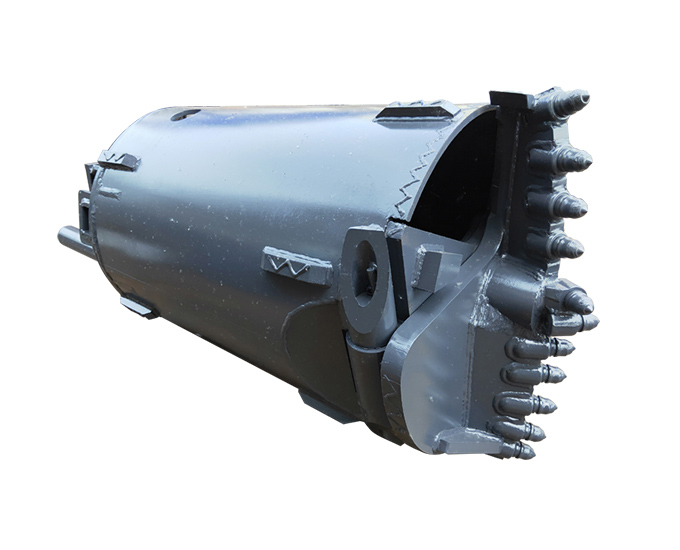

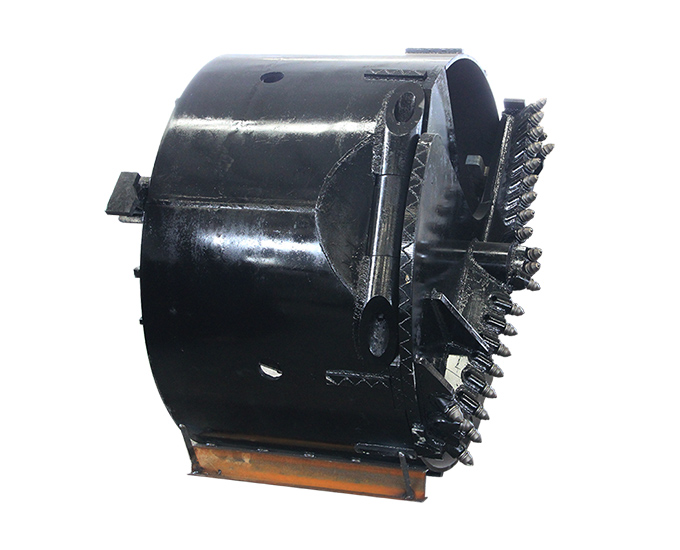

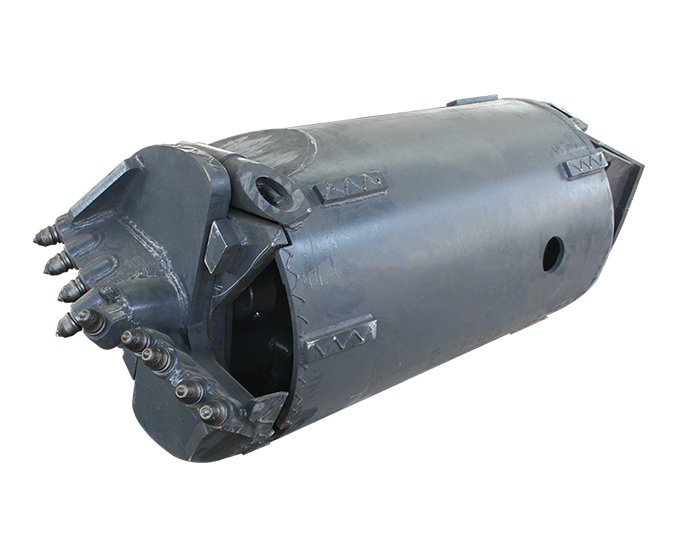

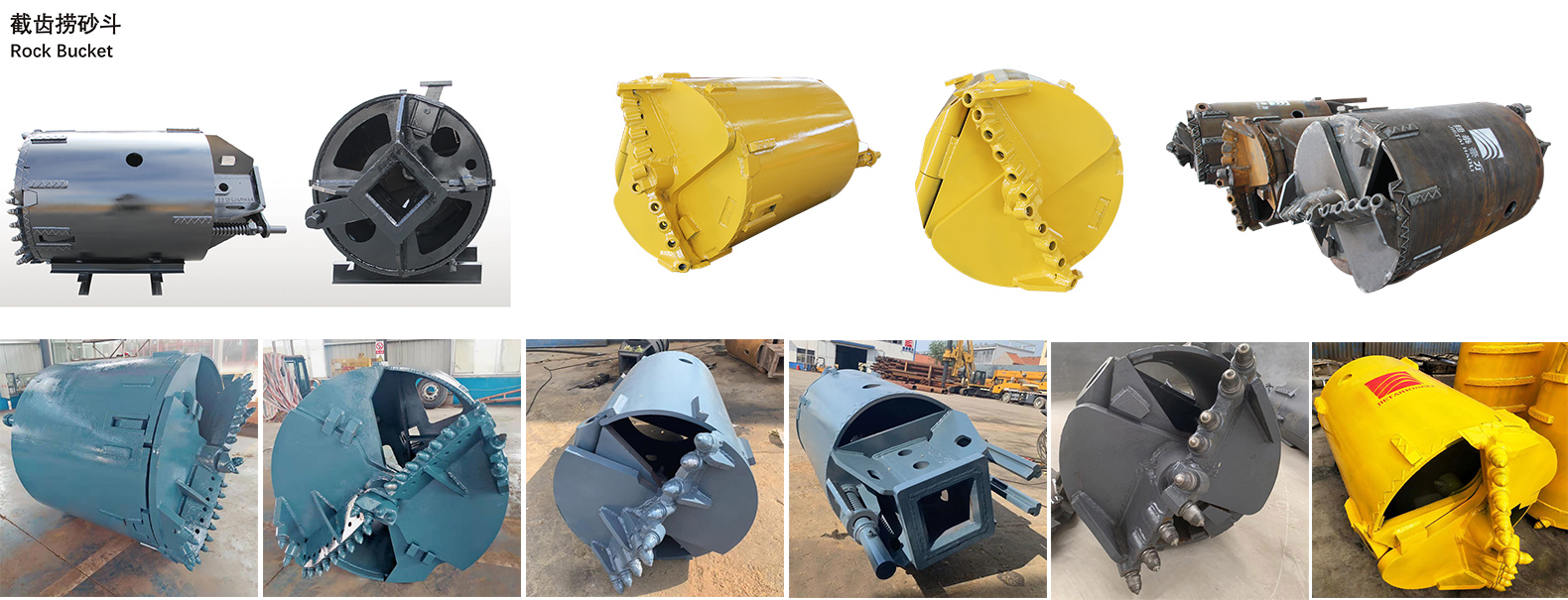

Rock Bucket

Customizable Items

Cutting DIA. Custom: design various cutting diameter based on demand, such us 950, o1050 etc;

Shell HIT. Custom: design as demand, prolong or shortten, increase amount of per drilling, improve efficiency;

Small barrel facilitates the coring operation; large barrel performs stage breaking;

Cutter Custom: single cutter and double cutter design as demand;

Bottom Custom : single bottom and double bottom design as demand;

Kelly Box Custom : custom kelly box size based on the kelly bar, like 130 130, 150 150,200* 200 etc;

Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.

Product Details
钻具直径 筒体高度 筒壁厚度 底板厚度 齿数 重量KG
Diammeter Shell Height Shell Thk Bottom Plate Thk Teeth Number Weight
600 1200 16 40/50 8 730
700 1200 16 40/50 8 800
800 1200 16 40/50 10 920
900 1200 16 40/50 12 1020
1000 1200 16 40/50 14 1280
1200 1200 20 40/50 16 1736
1250 1200 20 40/50 16 1685
1300 1200 20 40/50 17 1765
1400 1200 20 40/50 19 2135
1500 1200 20 40/50 20 2378
1600 1200 20 40/50 22 2620
1800 1000 20 50/50 24 3110
2000 800 20 50/50 26 3500
2200 800 20 50/50 26 4750
2500 800 20 50/50 28 5800
3000 800 20 50/50 35 6500
可选方头 三一150方 宝峨200方 宝峨250方
Kelly Box 150*150 200*200 250*250
钻底样式 双底双开门 单底双开门
Bottom Type Double Bottom Double Cut Single Bottom Double Cut
