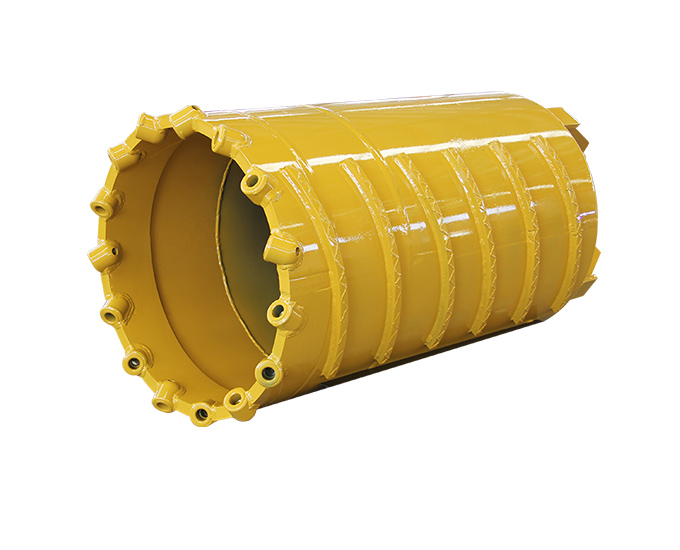

Core Barrel With Bullet Teeth

CustomizableItems

Cutting DlA. Custom : design various cutting diameter based on demand, such us Φ950、 Φ1o50 etc;

Shell HIT. Custom : design as demand, prolong or shortten, increase amount of per drilling, improve efficiency;

Small barrel facilitates the coring operation; large barrel performs stage breaking;

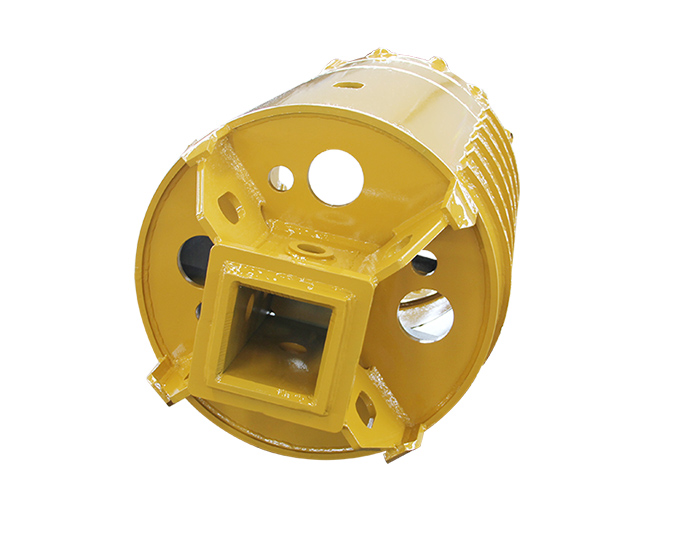

Kelly Box Custom : custom kelly box size based on the kelly bar, such us 130*130, 150*150,200*200 etc;

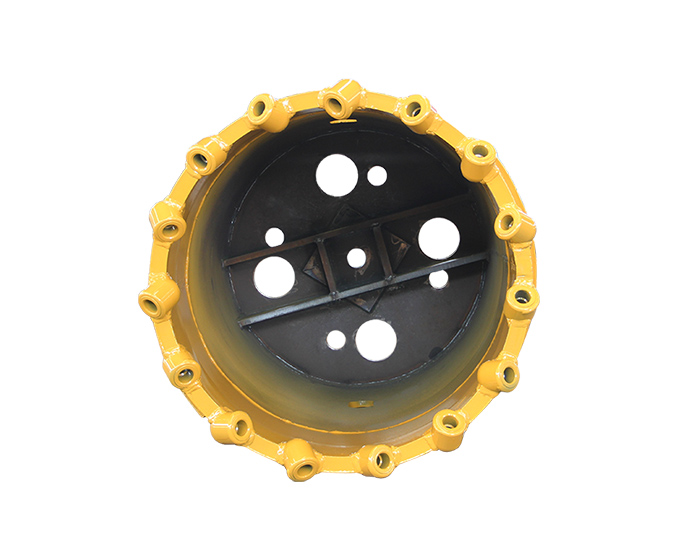

Teeth No. Custom : encrypt the drilling teeth based on demand etc;



Product Details
钻具直径 筒壁厚度 加强圈壁度 筒体高度 齿数 重量
Diammeter Shell Thk Strengthen Ring Thk Shell Height Teeth Number Weight
600 16 40 1200 8 600
700 16 40 1200 9 685
800 16 40 1200 12 800
900 16 40 1200 12 900
1000 20 40 1200 12 1025
1200 20 40 1200 15 1240
1250 20 40 1200 15 1285
1300 20 40 1200 16 1465
1400 20 40 1200 17 1570
1500 20 40 1200 24 1615
1800 20 40 1000 24 2295
2000 20 40 1000 27 3000
2200 20 40 800 32 3580
2500 20 40 800 38 4066
可选方头 三一150方 宝峨200方 宝峨250方
Kelly Box 150*150 200*200 250*250
备注:度量单位为mm,重量单位为kg。数据仅供参考,可根据施工地质确认钻斗选型。
The unit of measurement is millmeters and the weight is kilograms. The data are for reference only.
The drill bucket type can be confirmed according to the site layer condition.
